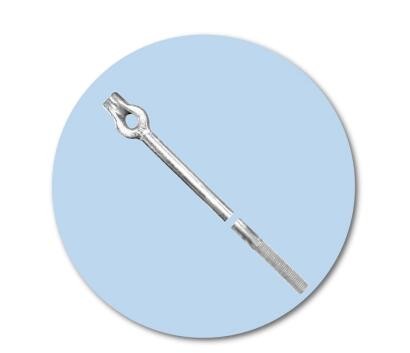

Thimble eye anchor rod is designed to connect the dead end guy grip or attach the guy wires to the pole or concrete line. Its looped end allows for easy attachment to guy wires, providing stability and support for overhead lines, power lines, and communication lines. This type of anchor rod is widely utilized in various applications to ensure the safe and reliable installation of utility structures, contributing to the overall integrity of the electrical and telecommunications infrastructure.
A thimble eye anchor rod without a nut can be used for guying utility poles, although its suitability depends on the specific load requirements and environmental conditions. The thimble eye allows for secure attachment to guy wires, providing stability and support to the poles. However, it’s important to ensure that the load capacity of the rod is sufficient for the forces acting on it, especially in high-wind areas or when supporting tall poles. In such cases, while the thimble eye anchor rod without a nut can be effective, using a rod with a nut may offer additional security and stability for heavier applications.
As a high-quality thimble eye anchor manufacturer, Yipeng provides you with Single, Twin, and Triple Thimble Eye Anchor Bolt. Below are the specific parameter information and drawings of these three types of thimble eye bolts.

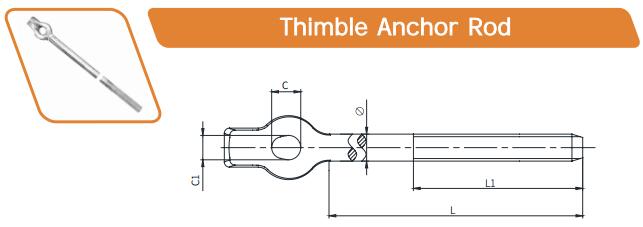

| Product Code | L (mm) | L1 (mm) | C (mm) | C1 (mm) | ∅ (mm) |
|---|---|---|---|---|---|
| 30404A01 | 1929 | 96 | 91 | 91 | 14.3 |
| 30404A02 | 1835 | 101 | 17 | 14.3 | 15.8 |
| 30404A03 | 2444 | 101 | 17 | 14.3 | 15.8 |
| 30404A04 | 1530 | 101 | 17 | 14.3 | 15.8 |
| 30404A05 | 2438 | 102 | 22 | 18 | 19 |
| 30404A06 | 2438 | 100 | 20.7 | 17.5 | 15.8 |
| 30404A07 | 2444 | 101 | 22.2 | 15.9 | 19 |
| 30404A08 | 2139 | 101 | 22.2 | 15.9 | 19 |
| 30404A09 | 2140 | 101 | 17 | 14.3 | 15.8 |

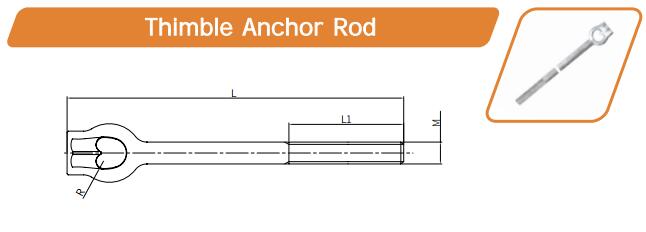

| Product Code | L (mm) | L1 (mm) | R (mm) | M (inch) |
|---|---|---|---|---|
| 30405A01 | 105 | 6.4 | 2438 | 3/4" |
| 30405A02 | 2438 | 95.3 | 6.35 | 3/4" |
| 30405A03 | 2139 | 100 | 6.35 | 3/4" |
| 30405A04 | 1830 | 90 | 5.5 | 5/8" |
| 30405A05 | 2444 | 101 | 7.9 | 1" |
| 30405A06 | 1833 | 101 | 5.6 | 5/8" |
| 30405A07 | 2444 | 101 | 5.6 | 5/8" |
| 30405A08 | 2139 | 101 | 5.6 | 5/8" |
| 30405A09 | 1524 | 46 | 6 | 17.5 |
| 30405A10 | 3054 | 101 | 7.9 | 1" |
| 30405A11 | 1835 | 100 | 6.35 | 3/4" |

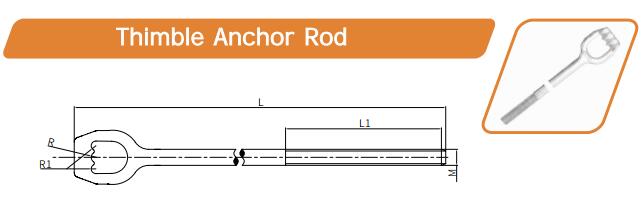

| Product Code | L (mm) | L1 (mm) | R (mm) | R1 (mm) | M (inch) |
|---|---|---|---|---|---|
| 30406A01 | 1351 | 189 | 6.35 | 5.60 | 3/4" |
| 30406A02 | 767 | 189 | 6.35 | 5.60 | 3/4" |
| 30406A03 | 1351 | 215 | 6.35 | 6.35 | 1" |
| 30406A04 | 2443 | 100 | 6.35 | 6.35 | 1" |
| 30406A05 | 1834 | 189 | 6.35 | 5.60 | 3/4" |
| 30406A06 | 3053 | 100 | 6.35 | 6.35 | 1" |
| 30406A07 | 767 | 215 | 6.35 | 6.35 | 1" |
| 30406A08 | 1677 | 0 | 6.35 | 6.35 | 1" |
With YIPENG's expertise in the eyebolt industry, we can help you save costs and stay competitive as your thimble anchor rod OEM partner. Whether it's standard or custom thimble anchor rod, we provide quick solutions for all market needs.
Corrosion Resistance: Buyers often face issues with the durability of anchor rods in harsh outdoor environments, especially in areas with high humidity or saltwater exposure, leading to rust and corrosion.
Size Compatibility: The difficulty in finding anchor rods that perfectly fit the required specifications for different applications can lead to delays and inefficiencies in installation.
Strength and Load Capacity: Some anchor rods may not provide sufficient strength or load-bearing capacity, leading to potential failures in critical infrastructure applications.
Corrosion-Resistant Coating: Our Thimble Eye Anchor Rods come with a high-quality galvanized or epoxy coating, offering excellent protection against corrosion and ensuring a longer lifespan, even in extreme weather conditions.
Customizable Sizes: We offer a wide range of sizes and lengths, and can also provide customized solutions to meet specific project requirements, ensuring the perfect fit for every application.
High Strength Material: Made from high-strength steel, our anchor rods are designed to handle heavy loads and extreme stress, ensuring reliable performance and safety in critical applications.
Durable Construction: Our Thimble Eye Anchor Rods are built for durability, with high-quality materials and coatings to resist corrosion and wear.
Easy Installation: The rods are designed for quick and efficient installation, reducing downtime and increasing productivity on-site.
Cost-Effective: With long-term durability and reliability, our products offer excellent value, reducing maintenance and replacement costs over time.
Power Transmission: Widely used in the construction of power lines and substations, ensuring secure anchoring for electrical systems.
Telecommunication Towers: Essential for the foundation and stability of telecom towers, holding them firmly in place under challenging conditions.
Construction Projects: Used for anchoring various heavy equipment and structures in large construction projects.
Standard Type: Suitable for general use, providing a reliable solution for most anchoring needs in various industries.
Heavy Duty Type: Designed for high-stress applications, where maximum strength and durability are required.
Corrosion-Resistant Type: Ideal for use in corrosive environments, with an additional coating for enhanced protection against rust and wear.
YIPENG is a Thimble Anchor Rod Manufacturer with over 10 years of experience in the production, R&D, and sales of electric power fittings. Based in Shahe, the "Capital of Electric" in China, we are strategically located near major transport hubs to ensure fast delivery.
Since 2010, we have specialized in the manufacture of overhead line fittings, insulating fittings, composite insulators, arresters, and more. With a team of over 300 staff, including 40 professional technicians, we ensure precision and innovation in every product.
Our products undergo rigorous testing at CECP's Power Fitting Test Lab, Electric Power Industry Quality Test Center, and Xi'an HV Research Institute. This guarantees reliability and excellent performance, earning us a solid reputation both domestically and internationally.
YIPENG Thimble Eye Anchor Rods are trusted in over 30 countries across Asia, Oceania, North America, South America, the Middle East, and Africa. Our products are built to withstand diverse environments, making them ideal for worldwide applications.
We follow the principle of "quality is life, reputation is base" and provide flexible operations, excellent after-sales service, and continuous innovation. Our customers can rely on us for long-term partnerships and top-notch service.
With unbeatable durability, top-tier corrosion resistance, and customizable solutions, YIPENG Thimble Eye Anchor Rods are the best choice for all your anchoring needs. Contact us now to get started with your order or discuss your requirements!
