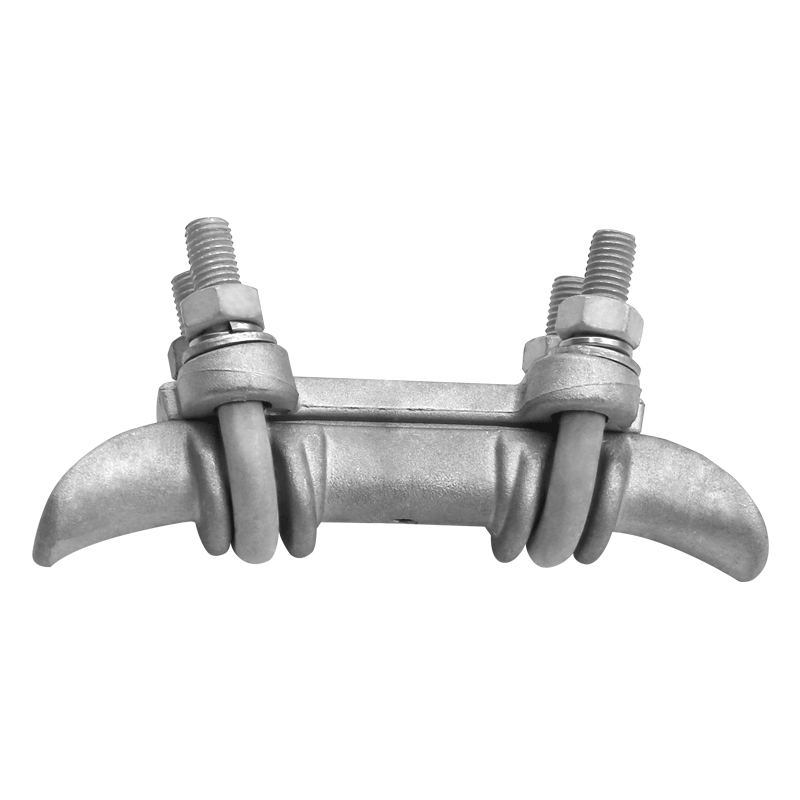

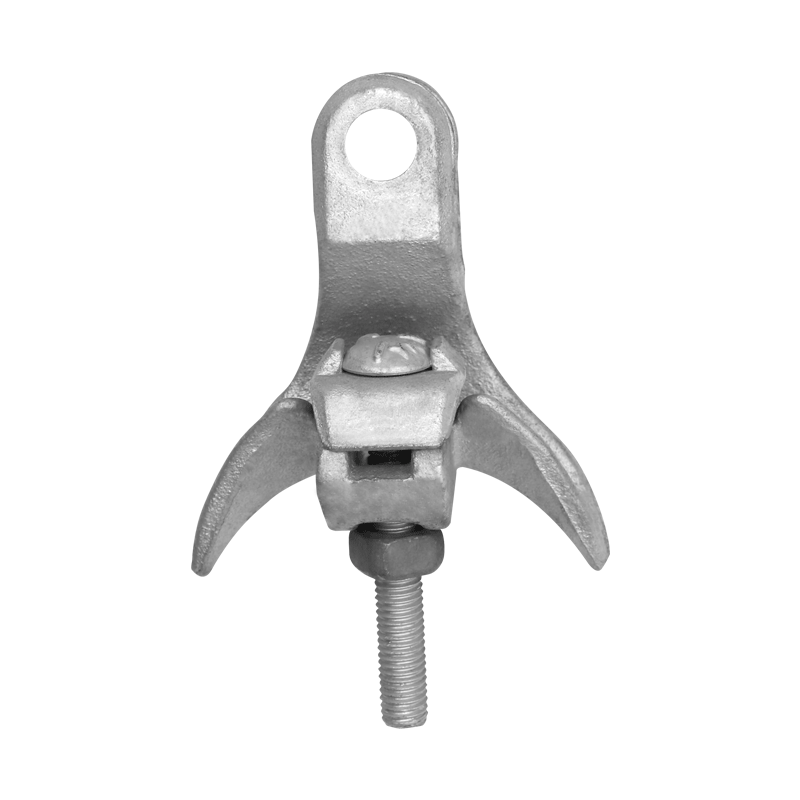

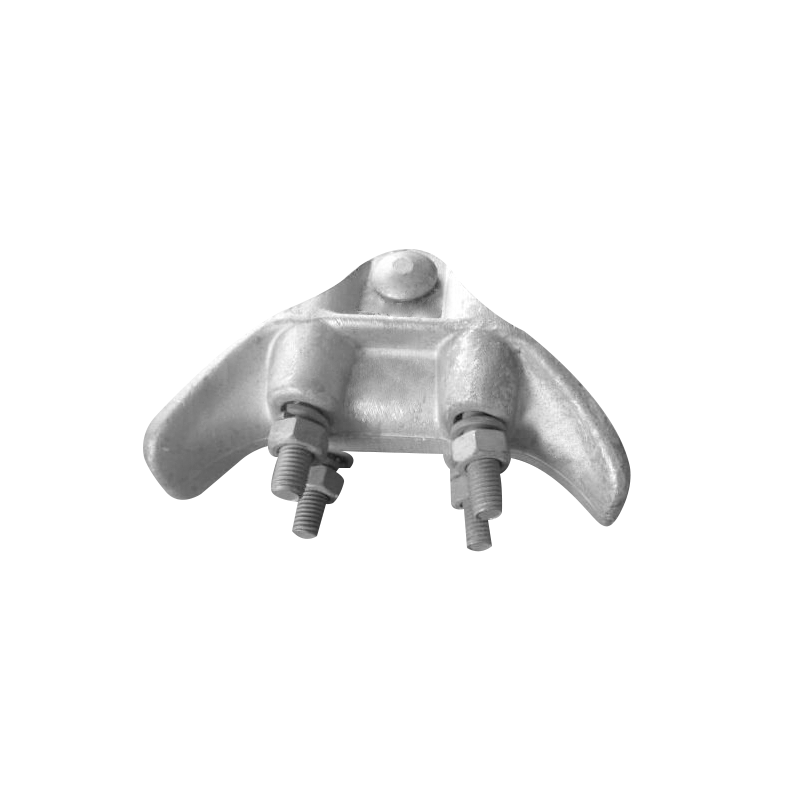

Suspension Clamp

Product Description

Suspension clamps are used to hang conductors or ground wires to insulators or link fittings to tower arms and substation structures.


A suspension clamp is designed to give the conductors both physical and mechanical support. This is important especially when you have installed the conductors for the power transmission line and even telephone lines.

Suspension clamps enhance the stability of the conductor by limiting their movements especially against a strong wind, storm, and other vagaries of nature.


Made of aluminum alloy or malleable cast iron, suspension clamps are characterized by their strength, durability, and reliability. The aluminum alloy suspension clamp is lightweight and corrosion-resistant, making it easy to handle and suitable for various environments.  The malleable cast iron suspension clamp offers high tensile strength, impact resistance, dimensional stability, and heat resistance, making it ideal for heavy-duty applications and elevated temperatures.


Suspension clamps feature a clever ergonomic design that ensures that the weight of the conductor is evenly distributed on the clamp’s body. This design also provides perfect angles of connection for the conductor. In some cases, counterweights are added to prevent the conductor’s uplift.

Other fittings such as nuts and bolts are used along with the suspension clamps to enhance the connection with the conductors.

You may also request a custom design of a suspension clamp to suit your application area. This is vital since some suspension clamps are designed for single cables while others are for bundle conductors.


Custom size and requirements are available upon request.


Suspension Clamp Complete Buying Guide

Outline


Introduction to Suspension Clamps

Importance of Suspension Clamps in Electrical Installations

Factors to Consider When Buying Suspension Clamps

Different Types of Suspension Clamps

Understanding Suspension Clamp Specifications

Proper Installation Techniques for Suspension Clamps

Maintenance and Inspection of Suspension Clamps

Common Mistakes to Avoid When Buying Suspension Clamps

Best Practices for Choosing and Using Suspension Clamps

Conclusion

FAQs

Suspension clamps are vital components in electrical installations, providing support and stability to overhead cables. Whether it's for power distribution lines, telecommunication networks, or other applications, choosing the right suspension clamp is crucial to ensure a reliable and secure installation. In this complete buying guide, we will explore the key factors to consider, different types of suspension clamps available, understanding specifications, proper installation techniques, maintenance tips, common mistakes to avoid, and best practices for choosing and using suspension clamps.

Introduction to Suspension Clamps

Suspension clamps are hardware devices designed to suspend and secure overhead cables, preventing them from sagging or being damaged due to environmental conditions or mechanical stress. These clamps play a critical role in maintaining the integrity and reliability of electrical systems, ensuring optimal performance and safety.

Importance of Suspension Clamps in Electrical Installations

Suspension clamps are essential in electrical installations for several reasons. Firstly, they provide mechanical support to overhead cables, preventing excessive sagging and maintaining the desired clearance from the ground or other objects. This helps to prevent damage to the cables and ensures consistent performance.

Additionally, suspension clamps help to distribute the weight of the cables evenly, minimizing stress on individual conductors and supporting structures. They also aid in reducing vibrations and oscillations caused by wind or other external factors, which can lead to wear and tear or electrical disturbances.

Factors to Consider When Buying Suspension Clamps

When purchasing suspension clamps, it is essential to consider several factors to ensure the right fit for your specific application. Here are some key factors to keep in mind:

Durability and Strength

Suspension clamps should be made from high-quality materials that can withstand environmental conditions, such as temperature variations, humidity, and exposure to UV radiation. The clamps should also have sufficient strength to support the weight and tension of the cables they are designed for.

Material Composition

Suspension clamps can be made from various materials, including stainless steel, aluminum alloy, and composite materials. Each material has its advantages and considerations in terms of strength, corrosion resistance, conductivity, and cost. The choice of material depends on the specific requirements of the installation.

Load Capacity

It is crucial to determine the maximum load capacity of the suspension clamp, which should match the anticipated load of the cables it will support. Exceeding the load capacity can compromise the structural integrity and safety of the installation.

Installation Method

Different suspension clamps have varying installation methods, such as bolted, wedge, or preformed clamps. The installation method should be compatible with the type of cable and the installation environment. It is essential to follow the manufacturer's guidelines for proper installation.

Compatibility with Cable Type

Suspension clamps are designed for specific cable types, such as bare conductors, insulated cables, or optical fiber cables. It is crucial to ensure that the clamp is compatible with the cable type to ensure proper gripping, electrical continuity, and insulation integrity.

Different Types of Suspension Clamps

Suspension clamps are available in various designs to accommodate different installation requirements. Here are some commonly used types of suspension clamps:

Parallel Groove Clamps

Parallel groove clamps are widely used for bare conductors and are designed with grooves that securely grip the conductors. They provide excellent mechanical strength and electrical conductivity.

U-Bolt Clamps

U-bolt clamps feature a U-shaped bolt that holds the cable in place against a saddle. They are commonly used for securing aerial bundled cables and provide a secure and reliable connection.

Wedge Clamps

Wedge clamps utilize a wedge-shaped piece that tightens against the cable, holding it firmly in place. They are often used for self-supporting cables and offer quick and easy installation.

Bolted Suspension Clamps

Bolted suspension clamps feature bolts that securely fasten the clamp to the supporting structure. They provide high load capacity and are suitable for heavy-duty applications.

Preformed Suspension Clamps

Preformed suspension clamps are designed with a preformed grip to match the shape of the cable, providing optimal support and reducing stress concentrations. They are commonly used for optical fiber cables.

Understanding Suspension Clamp Specifications

To make an informed buying decision, it is essential to understand the specifications associated with suspension clamps. Here are some key specifications to consider:

Maximum Load Capacity

The maximum load capacity indicates the maximum weight that the suspension clamp can support without compromising its integrity or safety. It is important to select a clamp that matches or exceeds the anticipated load requirements.

Conductor Range

The conductor range specifies the diameter or size of the conductors that the suspension clamp can accommodate. It is crucial to choose a clamp that fits the specific conductor size to ensure proper gripping and electrical continuity.

Diameter Range

The diameter range refers to the allowable range of cable diameters that the suspension clamp can accommodate. It is essential to select a clamp that matches the diameter of the cables to ensure a secure fit.

Insulation Type

For suspension clamps used with insulated cables, it is important to consider the compatibility with the insulation material and the specific requirements for insulation integrity and electrical safety.

Temperature Rating

Some suspension clamps have temperature ratings that indicate the range of temperatures they can withstand without compromising their mechanical properties or electrical performance. This is especially important for installations in extreme temperature environments.

Proper Installation Techniques for Suspension Clamps

Proper installation techniques are crucial to ensure the effectiveness and longevity of suspension clamps. Here are some important steps to follow during the installation process:

Pre-Installation Checks

Before installing suspension clamps, it is important to conduct pre-installation checks, such as inspecting the clamps for any visible defects, verifying the compatibility with the cable type, and ensuring all necessary accessories and hardware are available.

Correct Alignment and Positioning

The suspension clamps should be aligned correctly and positioned at the desired locations along the cable route. Proper alignment and positioning help to distribute the weight evenly and prevent excessive stress on individual clamps.

Adequate Torque and Tightening

During the installation process, it is essential to apply the correct torque and tightening to ensure a secure and reliable connection. Under-tightening can result in loose clamps, while over-tightening can damage the clamps or cables.

Ensuring Secure Gripping of Conductors

The suspension clamps should securely grip the conductors without causing damage or deformation. It is important to follow the manufacturer's guidelines and recommendations for proper gripping techniques.

Maintenance and Inspection of Suspension Clamps

Regular maintenance and inspection of suspension clamps are important to identify any potential issues and ensure their continued performance. Here are some maintenance and inspection tips:

Regular Cleaning and Visual Inspection

Periodically clean the suspension clamps to remove any dirt, debris, or contaminants that can affect their performance. Conduct visual inspections to check for signs of wear, corrosion, or damage.

Checking for Loose Fasteners

Inspect the fasteners, such as bolts or screws, to ensure they are properly tightened. Loose fasteners can compromise the stability and effectiveness of the suspension clamps.

Monitoring for Signs of Wear or Corrosion

Pay attention to any signs of wear, corrosion, or degradation of the suspension clamps. Promptly address any issues to prevent further damage or potential safety hazards.

Common Mistakes to Avoid When Buying Suspension Clamps

When purchasing suspension clamps, it is important to avoid common mistakes that can lead to unsatisfactory performance or safety risks. Here are some mistakes to avoid:

Neglecting Load Capacity Requirements

Ignoring the load capacity requirements can result in using suspension clamps that are not designed to handle the anticipated weight, leading to potential failures or safety hazards.

Overlooking Compatibility with Cable Type

Using suspension clamps that are not compatible with the specific cable type can result in poor gripping, insulation issues, or inadequate support, jeopardizing the overall integrity of the installation.

Ignoring Environmental Factors

Failure to consider environmental factors, such as temperature variations, humidity, or exposure to corrosive substances, can lead to premature deterioration of the suspension clamps and compromise their performance.

Failing to Follow Manufacturer Guidelines

Neglecting the manufacturer's guidelines for installation, maintenance, and inspection can result in improper usage or inadequate performance of the suspension clamps.

Best Practices for Choosing and Using Suspension Clamps

To ensure the best performance and safety of suspension clamps, here are some recommended best practices:

Consultation with Professionals

For complex or critical installations, it is advisable to consult with professionals or engineers experienced in electrical installations. They can provide expert advice on selecting the appropriate suspension clamps and ensuring proper installation.

Quality Assurance and Certification

Choose suspension clamps from reputable manufacturers that provide quality assurance and certifications. Look for products that comply with industry standards and have undergone rigorous testing and evaluation.

Compliance with Safety Standards

Ensure that the selected suspension clamps meet the necessary safety standards and regulations applicable to your specific installation. Compliance with safety standards is crucial for reliable and safe electrical systems.

Regular Maintenance and Replacement

Implement a regular maintenance schedule to inspect suspension clamps and replace any damaged or worn-out clamps promptly. This helps to prevent potential failures and ensures the longevity of the installation.

Conclusion

Selecting the right suspension clamps is essential for the success and reliability of electrical installations. By considering factors such as durability, load capacity, installation method, and compatibility with cable type, you can make informed decisions. Proper installation techniques, regular maintenance, and adherence to safety standards are critical for ensuring optimal performance and safety. By following the guidelines and best practices outlined in this buying guide, you can confidently choose and use suspension clamps for your specific needs.

FAQs

1. What is the purpose of suspension clamps in electrical installations?

Suspension clamps are used to support and secure overhead cables, preventing excessive sagging and maintaining clearance. They distribute the weight of the cables, reduce vibrations, and ensure the integrity of the electrical system.

2. Can suspension clamps be used for different types of cables?

Suspension clamps are designed for specific cable types, such as bare conductors, insulated cables, or optical fiber cables. It is important to choose clamps that are compatible with the cable type to ensure proper gripping and performance.

3. How do I determine the right size of suspension clamp for my project?

To determine the right size of suspension clamp, consider factors such as conductor range, diameter range, and load capacity. Match the clamp specifications with the diameter and load requirements of your cables.

4. Are there any specific installation requirements for suspension clamps?

Yes, there are specific installation requirements for suspension clamps. Follow the manufacturer's guidelines for alignment, positioning, torque, and tightening. Ensure the clamps securely grip the conductors and are installed according to recommended methods.

5. How often should suspension clamps be inspected and replaced?

Suspension clamps should undergo regular visual inspections for signs of wear, corrosion, or damage. Implement a maintenance schedule and replace any damaged or worn-out clamps promptly. The frequency of inspections may depend on the specific installation and environmental conditions.
