Screws Vs Studs Vs Bolts - What Are The Differences?

Pulished on Nov. 08, 2021

Studs


"Screws" are just a basic term for fasteners. They are day-to-day words. They include bolts, screws, nuts. As long as there are threaded fasteners, screws, studs, bolts, and also screws all have one thing in common, that is, they have strings. Along with the thread, what are the various other differences? In the following, I will certainly introduce the distinction between bolts, screws, and studs. How to identify the screw fasteners?



What is the distinction between screws, studs, and also bolts?



1. Screw: It is likewise a sort of fastener containing two parts, head as well as screw. It can be separated right into three categories according to the purpose: device screw established screw and also special-purpose screw. The screw is mainly made use of for a firmly threaded part as well as a limited link in between a get rid of a via opening and does not require a nut fit( this kind of connection is called a screw link as well as is likewise a detachable

connection; Fitted with a nut for a safe connection in between two parts with via openings.) The set screw is primarily used to protect the relative placement in between both components. Unique function screws such as eyebolts are utilized for raising parts.



2. Stud: A type of fastener that has no head and also only has strings on both ends. When linking, one end must be screwed right into the part with the internally threaded hole, the other end is passed through the component with the via hole, and afterward, the nut is screwed, even if the two components are secured together as a whole. This type of link is called a stud connection as well as is additionally a removable link. lt is generally made use of for the case where one of the connected components has a huge thickness, requires a compact framework, or is not suitable for bolting because of regular dis-assembly.



3. Bolt: Mechanical components, round threaded fasteners with nuts. A sort of fastener consisting of a head and a screw (a cylinder with an exterior string) is needed to be fitted with a nut for attaching the two parts via openings. This type of connection is called a bolted connection. If the nut is unscrewed from the bolt, it is possible to separate the two parts, so the bolt link is a removable link.



How to utilize it?



1. Both ends of the double-headed studs must be matched with nuts and also washing machines for both linked parts with through holes.

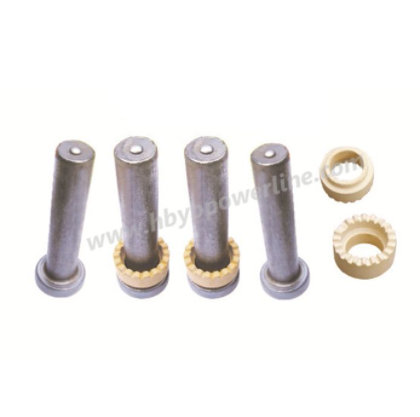

One end of the welding stud is welded to the surface of the linked item, and also the other end (threaded end) travels through the linked piece with the via opening, then the washer is put on, as well as the nut isscrewed to connect the two connected parts into one item.



2. bm= 1d studs are generally utilized for the connection in between two steel adapters; bm= 1.25 d, as well as bm= 1.5ddouble-end studs, are normally utilized for actors iron joints connected to steel. The connection between the pieces; the bm= 2d double-end stud is generally utilized for the link between the aluminum alloy

connected piece as well as the steel connected item. The previous connector has actually an inside threaded bore, as well as the latter connector, has actually a through bore.



We provide various fasteners including screws, studs and bolts, please feel free to contact us if you are interested in them.
